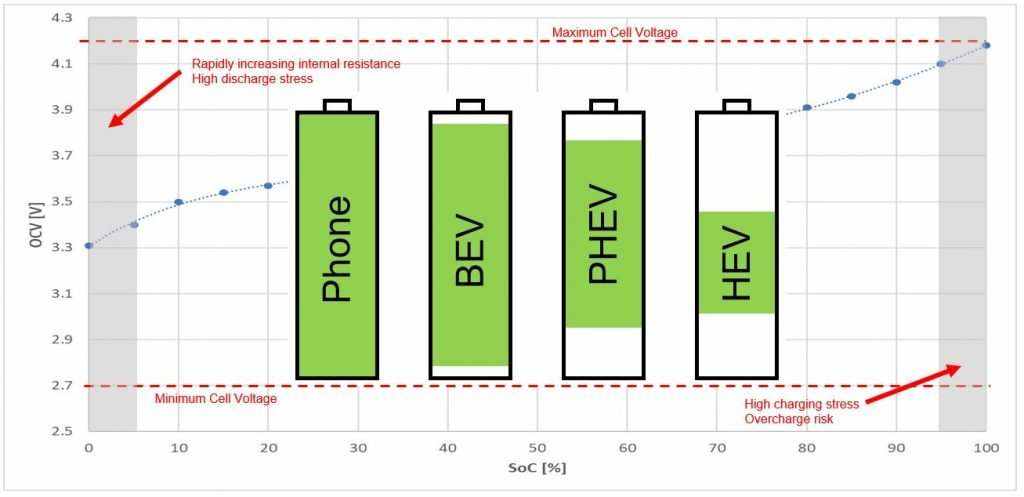

When it comes to batteries, most of us are familiar with basic concepts like volts, amps, and watts. However, the jargon surrounding battery packs can be confusing. One of the most common questions is what the ‘S’ and ‘P’ on a battery pack mean. These letters indicate whether the battery pack is configured in ‘series’ or ‘parallel’. Understanding these configurations is crucial for optimizing battery performance and longevity. In this article, we’ll delve into the significance of ‘S’ and ‘P’, explore their impact on battery performance, and discuss how to read battery pack labels.
What Do ‘S’ and ‘P’ Mean on a Battery Pack?
The ‘S’ and ‘P’ on a battery pack refer to the configuration of individual cells within the pack. These configurations determine how the cells are connected to achieve the desired voltage and capacity. Let’s break down what each letter means:
Series Configuration (‘S’)
In a series configuration, the positive terminal of one cell connects to the negative terminal of the next cell, and so on. This arrangement increases the voltage of the battery pack. For example, connecting two 1.5-volt batteries in series results in a 3-volt output. The formula for calculating the total voltage in a series configuration is:
Total Voltage = Number of Cells × Voltage per Cell
Series configurations are ideal for devices that require high voltage but lower capacity. Examples include power tools, cameras, and flashlights. The higher voltage allows these devices to deliver greater torque and maintain speed under load.
Parallel Configuration (‘P’)
In a parallel configuration, all the positive terminals are connected together, and all the negative terminals are connected together. This arrangement increases the capacity of the battery pack while maintaining the same voltage. For example, connecting two 12-volt batteries in parallel results in a 12-volt output with double the capacity. The formula for calculating the total capacity in a parallel configuration is:
Total Capacity = Number of Cells × Capacity per Cell
Parallel configurations are suitable for devices that require long, steady operations. Examples include e-bikes, scooters, and uninterruptible power supplies (UPS). The increased capacity ensures that these devices can operate for extended periods without needing a recharge.
Combined Series and Parallel Configurations
Many battery packs combine both series and parallel configurations to achieve the desired voltage and capacity. This hybrid approach leverages the advantages of both configurations. For example, a battery labelled as 4S2P has two four-cell series strings wired together in parallel. This configuration provides a nominal voltage of 14.4 volts (4 × 3.6 volts) and double the capacity, making it ideal for powering laptops and notebooks.
Why Are Series and Parallel Configurations Important?
The choice between series and parallel configurations depends on the power demands of the device. Understanding these configurations helps in selecting the right battery pack for specific applications. Let’s explore the importance of series and parallel configurations in more detail:
Series Configurations for High-Voltage Devices
Devices that draw a lot of power in short bursts, such as power tools and cameras, benefit from higher-voltage packs that use a series configuration. The higher voltage allows these devices to deliver greater torque and maintain speed under load. For example, a DeWalt 20V MAX pack uses a 5-cell series arrangement to ensure the output is high enough to give the motor the grunt it requires.
When selecting a power tool battery, it’s essential to consider the voltage requirements. A higher voltage pack can provide better performance and longer run times, making it a worthwhile investment for professional users.
Parallel Configurations for Long, Steady Operations
Devices that require long, steady operations, such as e-bikes and scooters, often rely on packs built from a combination of series and parallel groups. These packs consist of cells wired in series to increase voltage, and multiple series strings are then connected in parallel to raise capacity. This architecture combines the advantages of both systems and is why you will often see batteries that are labelled with both an ‘S’ and a ‘P’ designation.
For example, a battery labelled as 13S4P has thirteen batteries connected serially to increase voltage, and four of these series strings are wired together in parallel to raise capacity. This configuration is commonly used to power e-scooters and e-bikes, providing the necessary voltage and capacity for extended use.
Hybrid Configurations for Versatile Applications
Hybrid configurations that combine series and parallel arrangements are ideal for versatile applications. These configurations allow for adjustable voltage and capacity, making them suitable for a wide range of devices. For instance, a battery labelled as 4S2P is commonly used to power laptops and notebooks, providing a nominal voltage of 14.4 volts and double the capacity.
Hybrid configurations are also used in electric vehicles (EVs). For example, the 12S72P configuration is common in Rivian vehicles, while the 192S3P architecture is used in the Hummer EV. These configurations provide the necessary voltage and capacity for long-range driving and high-performance applications.
How to Read Battery Pack Labels
Reading battery pack labels can be confusing, but understanding the notation can help you select the right battery for your needs. Let’s break down how to read battery pack labels:
Understanding the ‘S’ and ‘P’ Notation
The ‘S’ and ‘P’ notation on battery pack labels indicates the number of cells connected in series and parallel, respectively. For example, a battery labelled as 4S2P has four cells connected in series and two of these series strings connected in parallel.
To calculate the total voltage and capacity, you can use the following formulas:
Total Voltage = Number of Cells in Series × Voltage per Cell
Total Capacity = Number of Cells in Parallel × Capacity per Cell
For instance, a 4S2P battery with 3.6-volt cells has a total voltage of 14.4 volts (4 × 3.6 volts) and double the capacity. This configuration is ideal for powering laptops and notebooks.
Common Battery Pack Configurations
Several common battery pack configurations are used in various applications. Let’s explore some of the most commonly used configurations:
4S2P Configuration
The 4S2P configuration is commonly used to power laptops and notebooks. It consists of four cells connected in series to increase voltage and two of these series strings connected in parallel to raise capacity. This configuration provides a nominal voltage of 14.4 volts (4 × 3.6 volts) and double the capacity, making it ideal for portable devices.
13S4P Configuration
The 13S4P configuration is commonly used to power e-scooters and e-bikes. It consists of thirteen cells connected in series to increase voltage and four of these series strings connected in parallel to raise capacity. This configuration provides a nominal voltage of 48.1 volts (13 × 3.7 volts) and four times the capacity, making it suitable for electric mobility applications.
12S72P Configuration
The 12S72P configuration is commonly used in electric vehicles (EVs). It consists of twelve cells connected in series to increase voltage and seventy-two of these series strings connected in parallel to raise capacity. This configuration provides a nominal voltage of 43.2 volts (12 × 3.6 volts) and seventy-two times the capacity, making it ideal for long-range driving and high-performance applications.
192S3P Configuration
The 192S3P configuration is used in the Hummer EV. It consists of one hundred ninety-two cells connected in series to increase voltage and three of these series strings connected in parallel to raise capacity. This configuration provides a nominal voltage of 691.2 volts (192 × 3.6 volts) and three times the capacity, making it suitable for high-performance electric vehicles.
Conclusion
Understanding the ‘S’ and ‘P’ notation on battery packs is essential for selecting the right battery for your needs. Series configurations increase voltage, while parallel configurations increase capacity. Hybrid configurations combine the advantages of both systems, making them suitable for a wide range of applications. By reading battery pack labels and understanding the notation, you can make informed decisions when choosing a battery pack for your devices.
Frequently Asked Questions (FAQ)
What does the ‘S’ notation mean on a battery pack?
The ‘S’ notation on a battery pack indicates the number of cells connected in series. This configuration increases the voltage of the battery pack.
What does the ‘P’ notation mean on a battery pack?
The ‘P’ notation on a battery pack indicates the number of cells connected in parallel. This configuration increases the capacity of the battery pack while maintaining the same voltage.
Why are series and parallel configurations important?
Series and parallel configurations are important because they determine the voltage and capacity of a battery pack. Understanding these configurations helps in selecting the right battery for specific applications.
How do I read battery pack labels?
Battery pack labels use the ‘S’ and ‘P’ notation to indicate the number of cells connected in series and parallel, respectively. To read the label, count the number of cells in series and parallel, and use the formulas to calculate the total voltage and capacity.
What are some common battery pack configurations?
Some common battery pack configurations include 4S2P, 13S4P, 12S72P, and 192S3P. These configurations are used in various applications, such as laptops, e-scooters, electric vehicles, and high-performance electric vehicles.
